Industrialised Deep Retrofit HUB Envelope Technologies DenvelopsComfort Prefabricated Façade

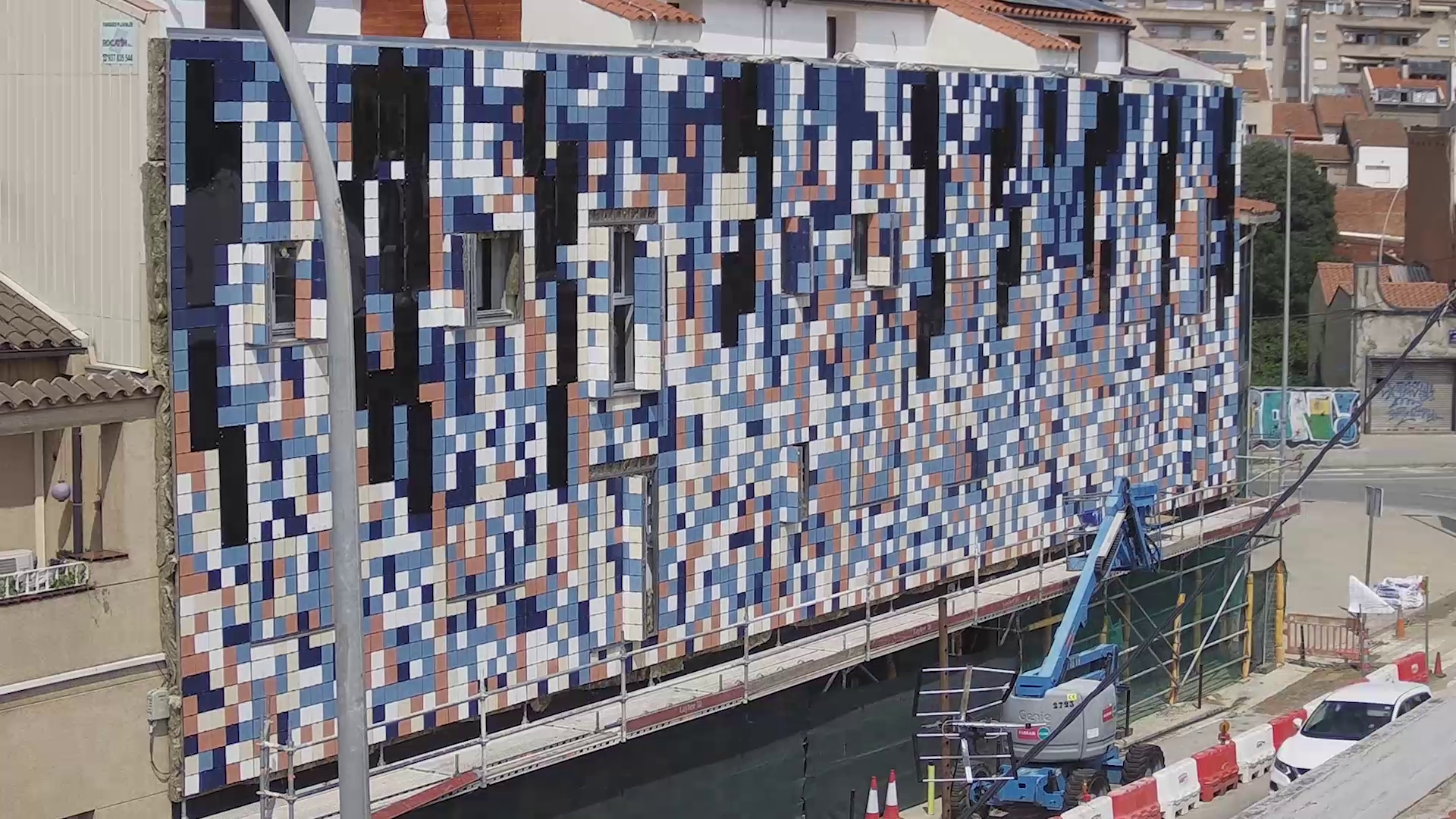

See the prefabricated panel applied in a real building

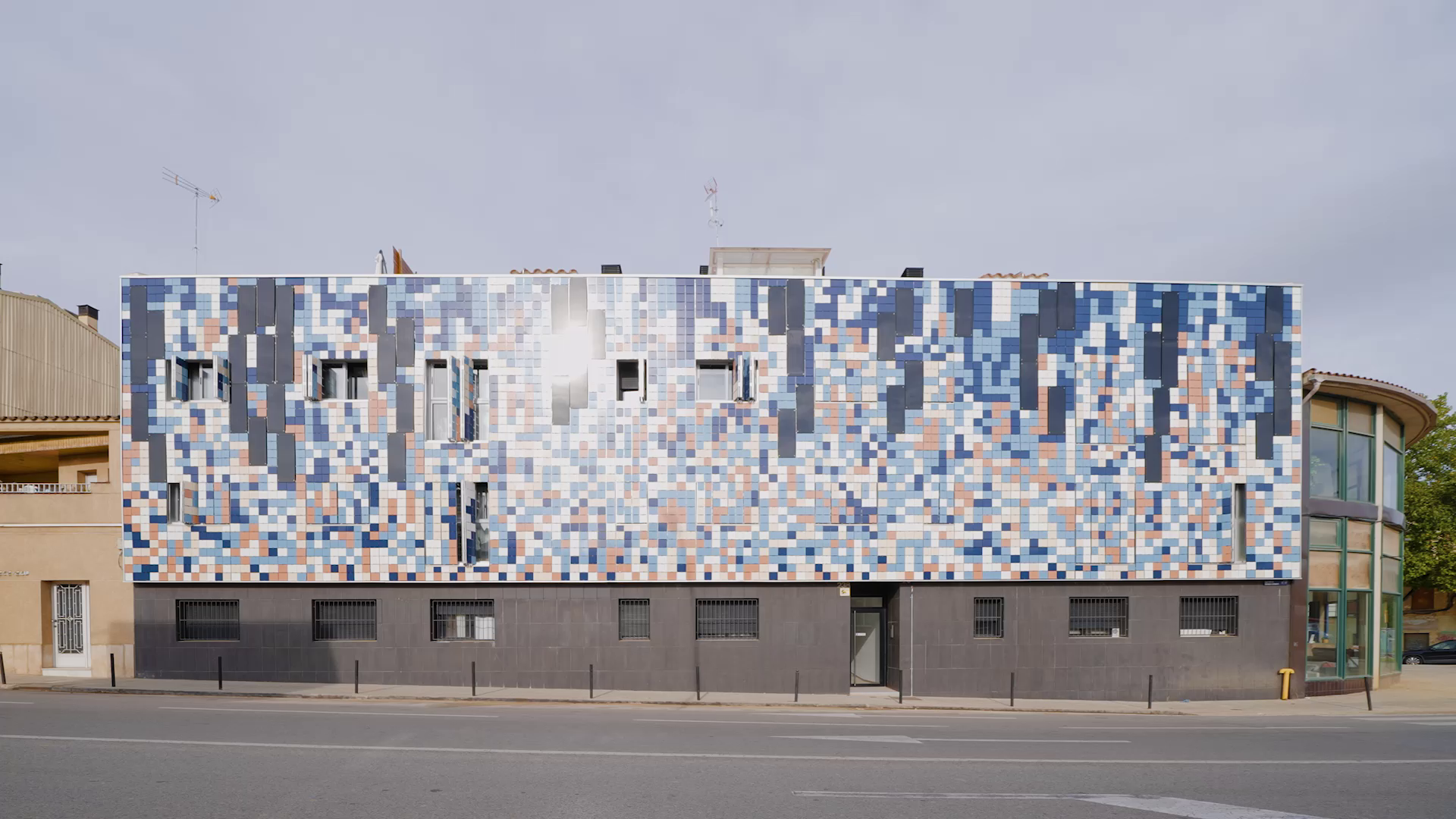

building after deep retrofit

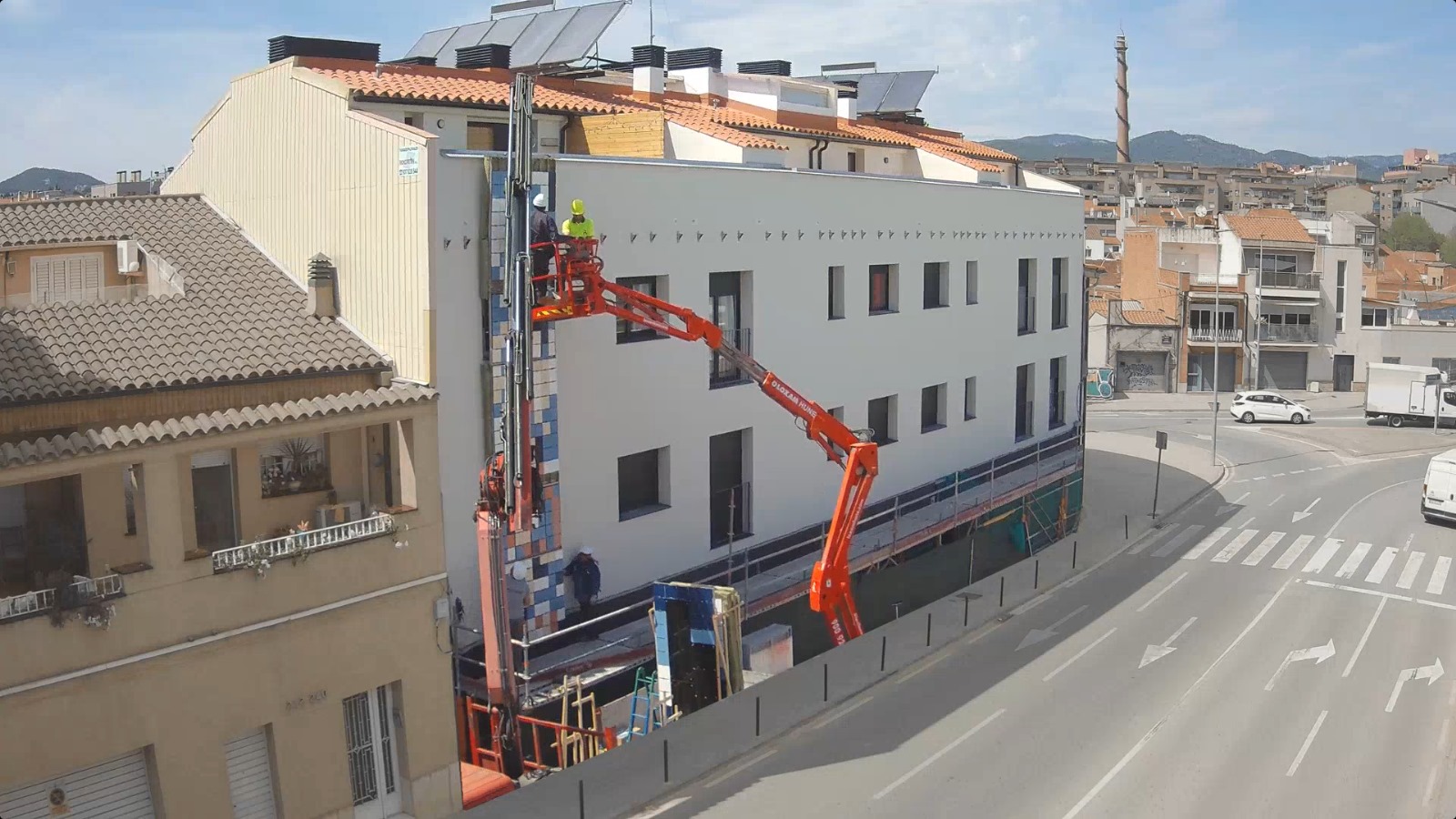

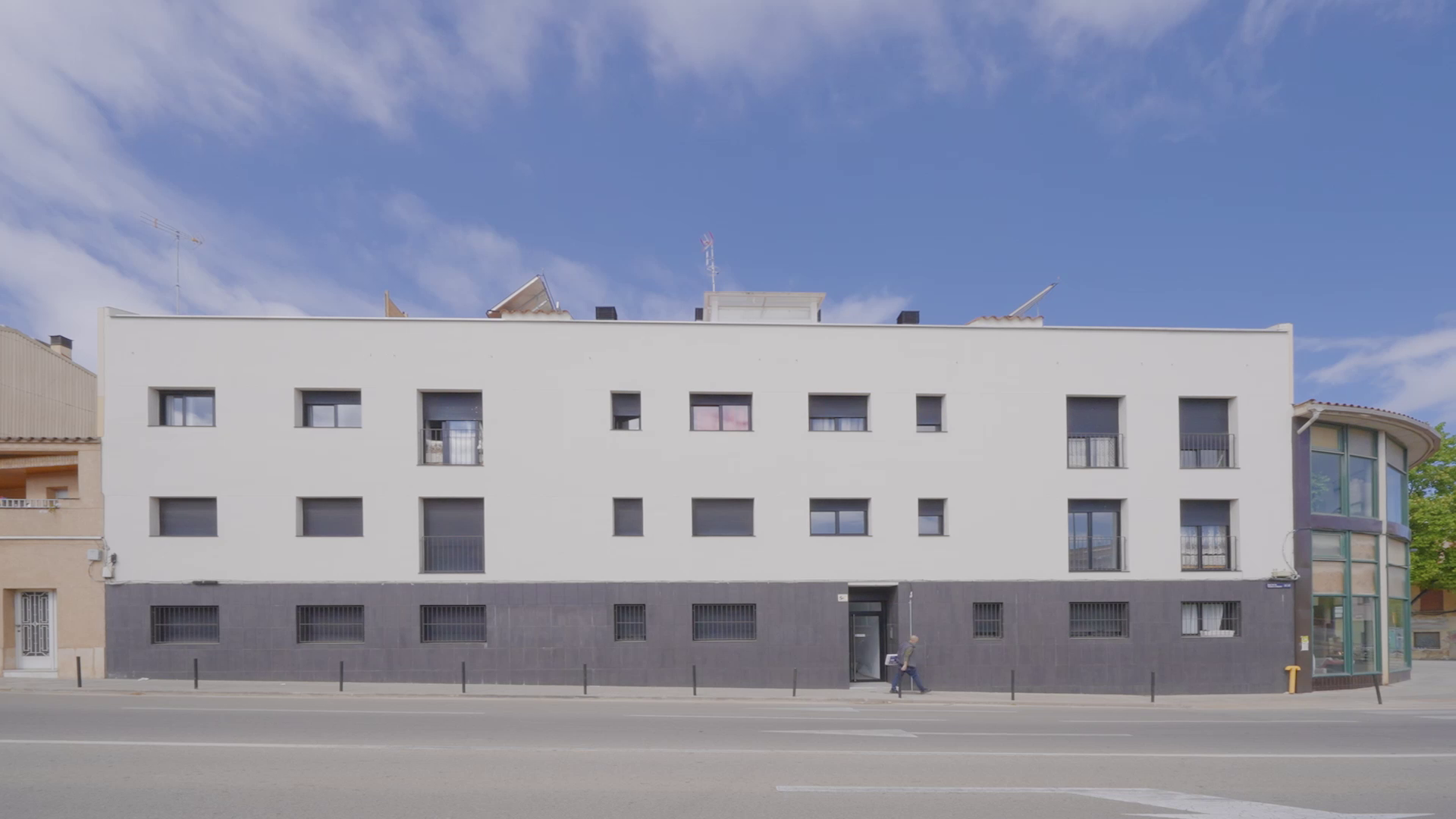

The property in southwest Terrassa, between Olesa and Martorell roads, occupies an irregular plot with a U-shaped building around a courtyard. It includes two residential blocks (East and Northwest) and a commercial space not part of the renovation project.Each block has three floors plus an attic, with separate entrances, stairs, and elevators, totalling 32 homes. Two basement levels link both blocks, used for parking and storage.Built in 2008 but never finished, the 4,504 m² complex suffered damage from abandonment. AHC acquired it to complete works and dedicate 1,280 m² of the East block to social housing.
January 16, 2026

Terrassa Barcelona

Spain

1 - 1

Explore prefabricated integrated technologies

image (2)

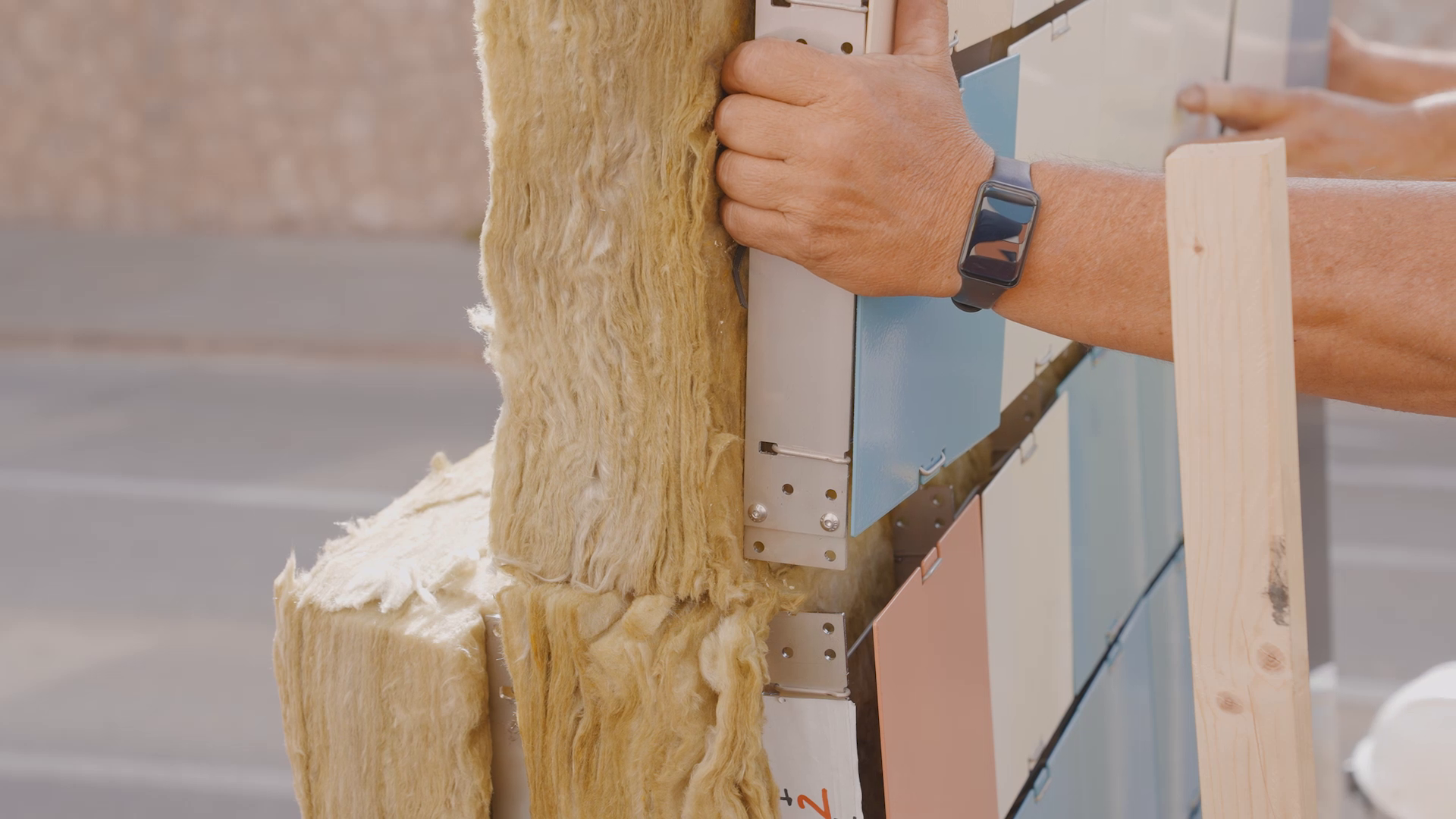

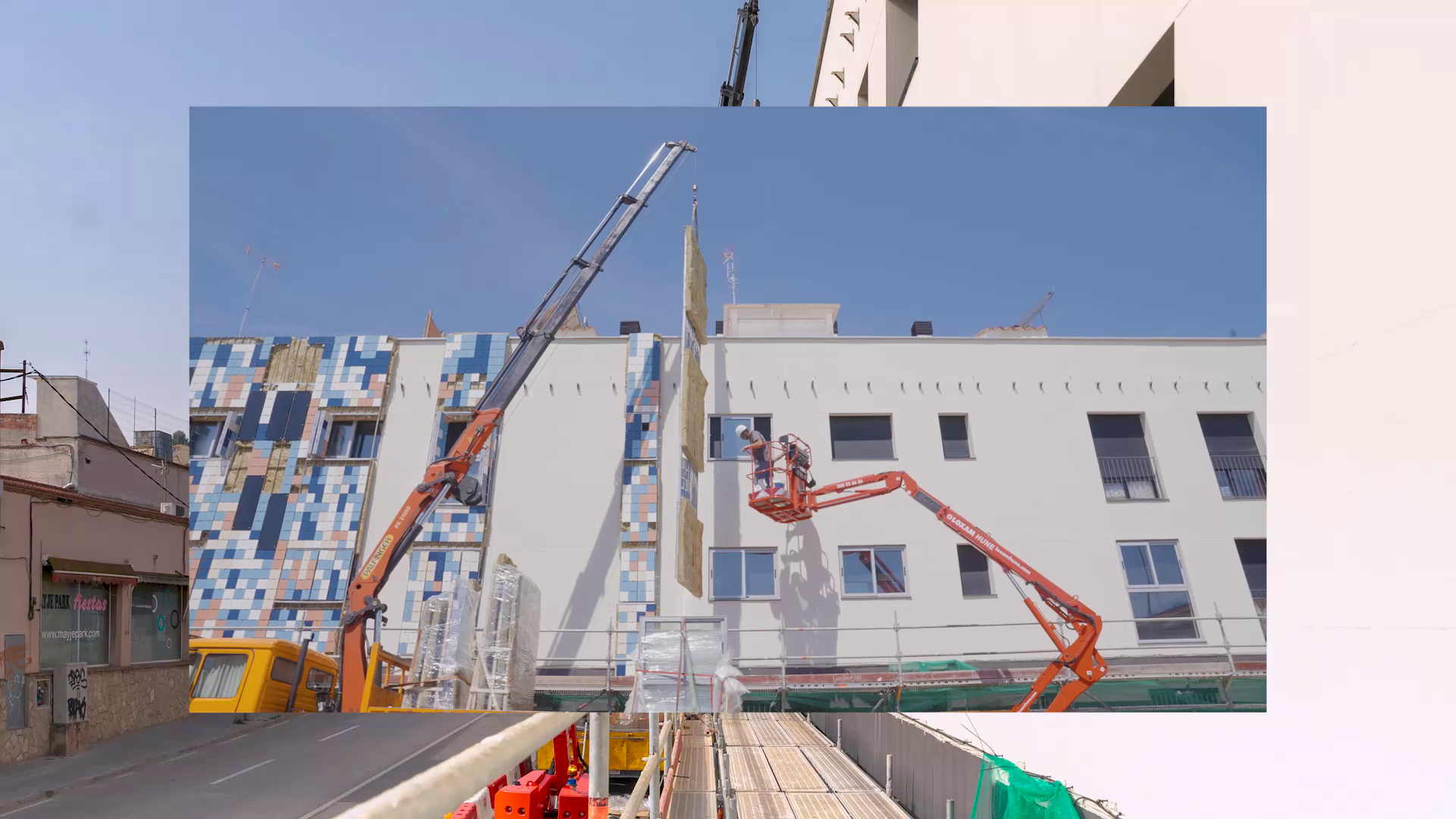

The prefabricated panels used are timber-frame façade elements designed for a quick and efficient installation. Each panel is custom-sized to fit the building’s geometry. These panels integrate multiple layers, including thermal insulation, smart glazing windows, and ventilation units, enabling a high-performance envelope. The panels are engineered for quick on-site assembly, up to 180 m² per day, and are anchored to the existing structure after partial removal of the outer brick layer.
January 16, 2026

Prefabricated Multifunctional Façade by Fanti

Facade Smartwall Envelope

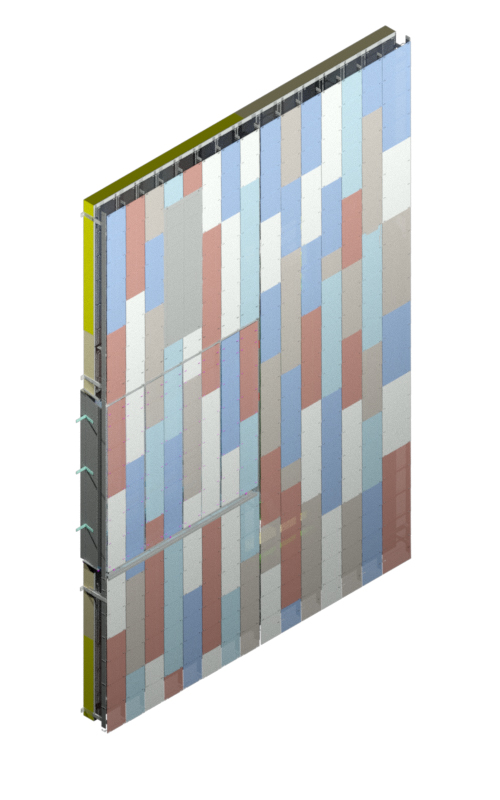

SmartWall by AMS is a prefabricated panel for internal or external façades. It combines frame, insulation, boards, coatings, and optional features like windows, doors, fan coils, or HVAC units. It can integrate PV systems to power its functions, adapting to diverse renovation needs.
January 16, 2026

SmartWall Façade Panel

facade retrofit works kasava

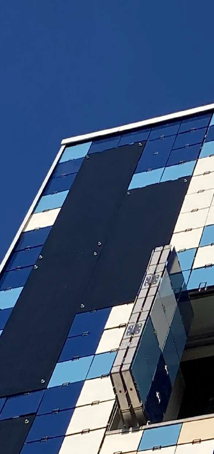

ConExWall solution is a fully prefabricated façade element for serial building refurbishment.The panel has been designed to match nZEB according to national directives.
January 16, 2026

ConExWall Prefabricated Façade

installation prefabricated facade spain
Prefabricated Multifunctional Façade (PMF) with integrated PV panels as external cladding, mechanical ventilation units with heat recovery hidden in new balconies, air ducts prefabricated within envelope.The 30cm panels include 14cm mineral wool, waterproof layers, and thermo-treated cladding for superior performance.Early-Reno tool for PV optimization and Data Handler for tenant interaction.
January 16, 2026

Timber Prefabricated Multifunctional Façade

deep retrofit timber panel building
The façade elements are made of a solid wood exterior cladding based on slow-grown thermo-treated pine (heat treatment to improve timber stability). In the elements, both the OSB board on the inner surface and the outside wind barrier provide airtight layers within the building envelope.New energy efficient windows are integrated in the façade.
January 16, 2026

Multifunctional Timber Prefabricated Façade

1 - 5
