Industrialised Deep Retrofit HUB Envelope Technologies SmartWall Façade Panel

GENERAL INFORMATION

SmartWall Façade Panel

Technology year: 2025

Technology maturity level: TBC

Manufacturer: AMS

Technology year: 2025

Technology maturity level: TBC

Manufacturer: AMS

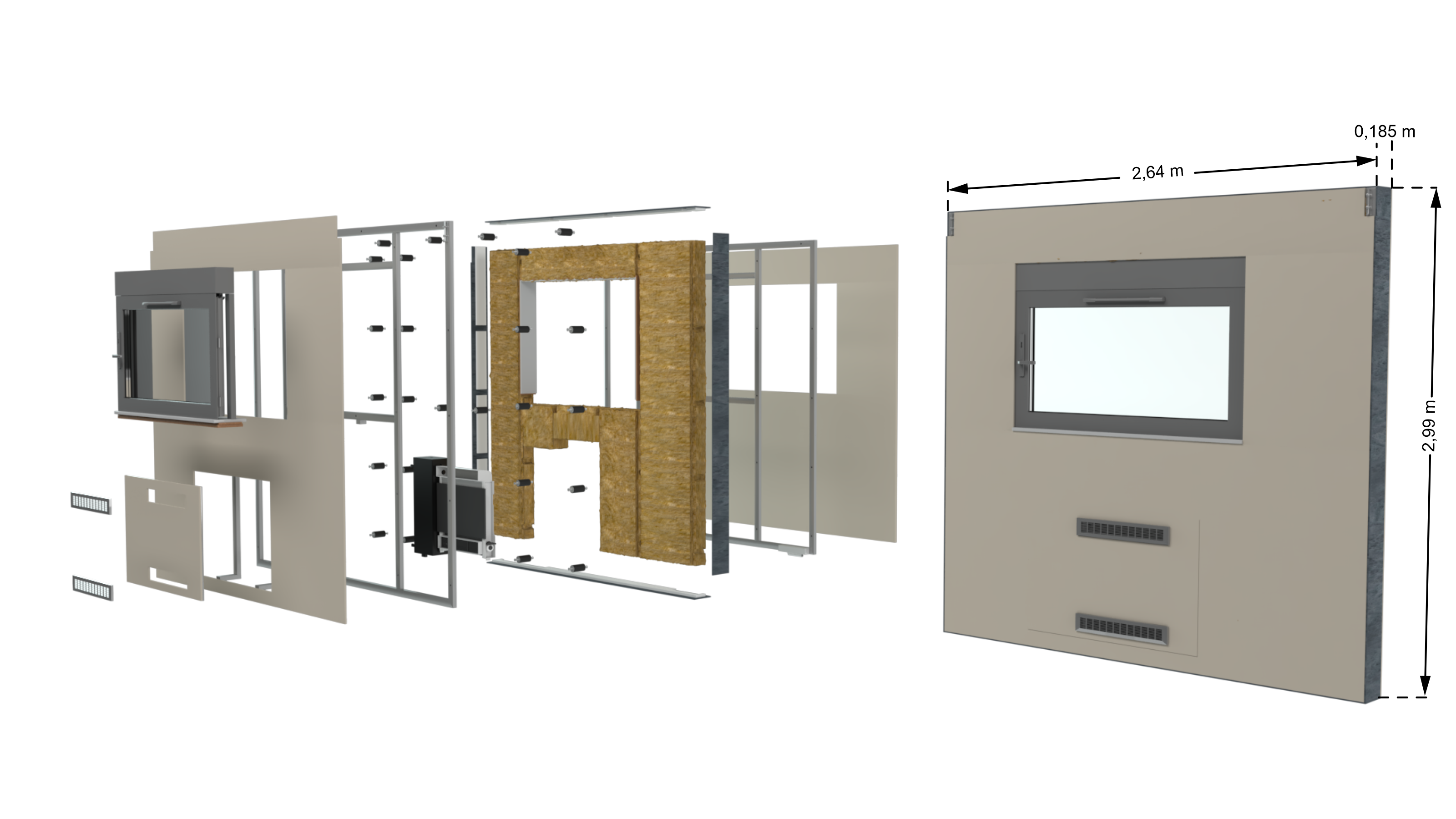

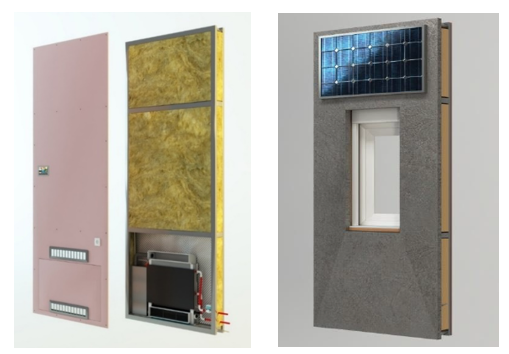

SmartWall by AMS is a prefabricated panel for internal or external façades. It combines frame, insulation, boards, coatings, and optional features like windows, doors, fan coils, or HVAC units. It can integrate PV systems to power its functions, adapting to diverse renovation needs.

Envelope technology

Prefabricated envelope technology

The prefabricated panel is designed to match nZEB according to national directives.

External finishing

Cement board of 12.5 mm with AMS multifunctional nano-coating

Ventilated cavity

Main structure

Steel profiles

Insulation

Mineral wool

Compensation layer

Mineral wool with aluminium foil

Anchoring element

n/a

Joints

n/a

Tolerances

n/a cm

Circularity

Embracing circularity in building renovation can lead to more sustainable and environmentally friendly outcomes. This means prioritizing the reuse and recycling of building materials, for example by implementing design strategies to facilitate the disassembly and reuse.

Ease of disassembly (system level)

100%
Ease of reuse

n/a
Ease of recycling (component level)

90%

Materials origin

n/a
Material use efficiency / Waste produced during production of the technol

n/a
Circularity certification

n/a

General Data

Max panel width

1.760 m

Max panel height

2.55 m

Panel Weight

0.91 kN/m²

Panel thickness

24.5 cm

Performance

We measure the effectiveness and efficiency of the building's prefabricated panels in terms of U-value, Acoustic resistance, Fire resistance, Seismic, Water/Air tightness.

U-value: 0.23 - 0.31 W/m²K

U-value

0.23 - 0.31 W/m²K

Acoustic resistance

Yes

Fire resistance

Yes

Fire resistance

Yes

Water/Air tightness

Yes

Certifications and tests

With certification and testing, the renovation project can achieve a higher level of quality, safety, and sustainability.

Simulation campaign

n/a

Tests

n/a

CE mark / type of certificate

n/a

See the prefabricated panel applied in a real building

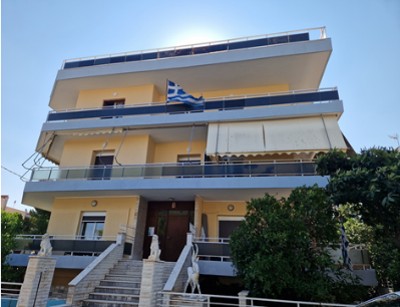

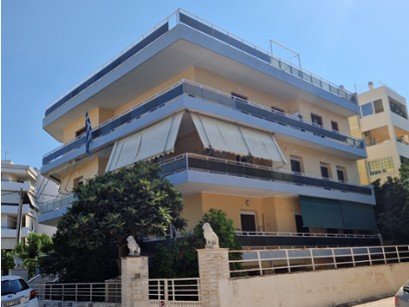

The site once hosted Voula’s aqueduct, active from WWII’s end until the mid-1960s, when the municipality connected to Athens’ main water network (EIDAP). The old aqueduct buildings were demolished, and the land was sold to the Kalogeratou family, who built three apartments in 1971. In 2010, the property was donated to the VVV Municipality, which now uses it to house elderly residents and low-income families. Maintenance has been handled by the Technical Department, though limited funding during Greece’s 2010–2019 crisis caused structural and system deterioration. The building has reinforced concrete foundations, frame, floors, and roof, brick masonry walls, balconies, cement plaster finishes, mixed wood and aluminum openings, and minimal insulation.

January 16, 2026

Voula Renovated Building in Athens

Greece

1 - 1
